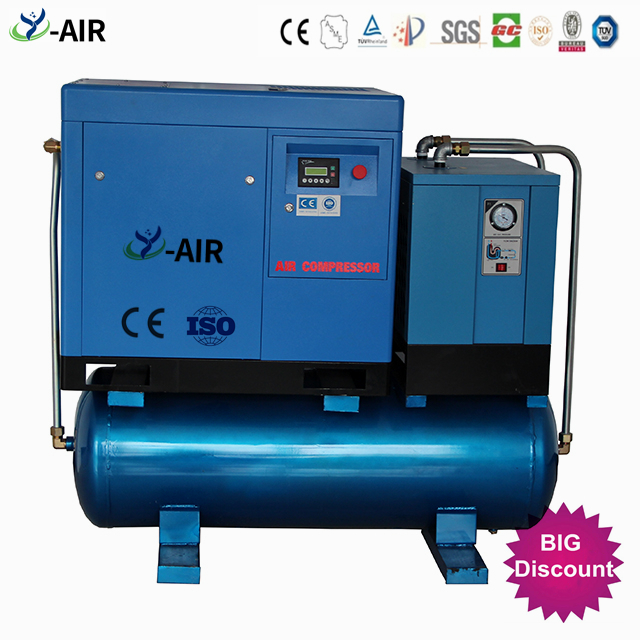

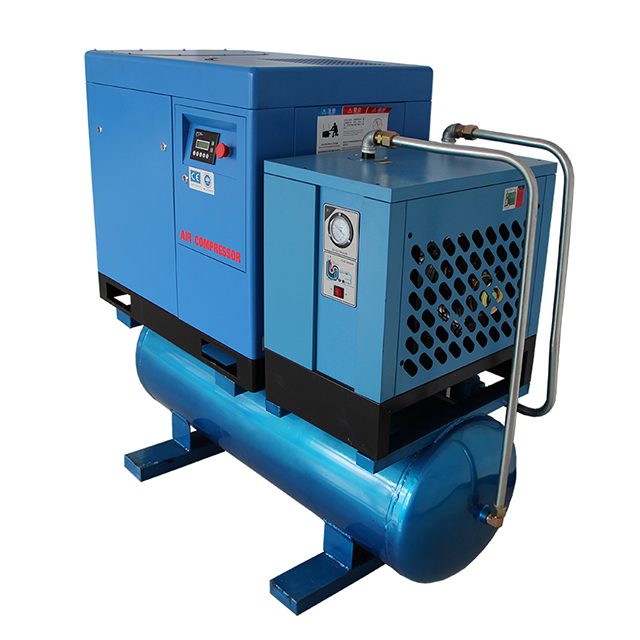

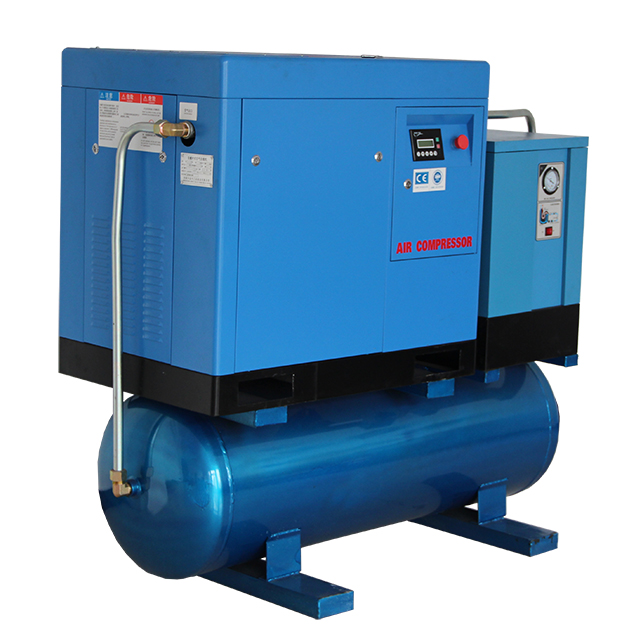

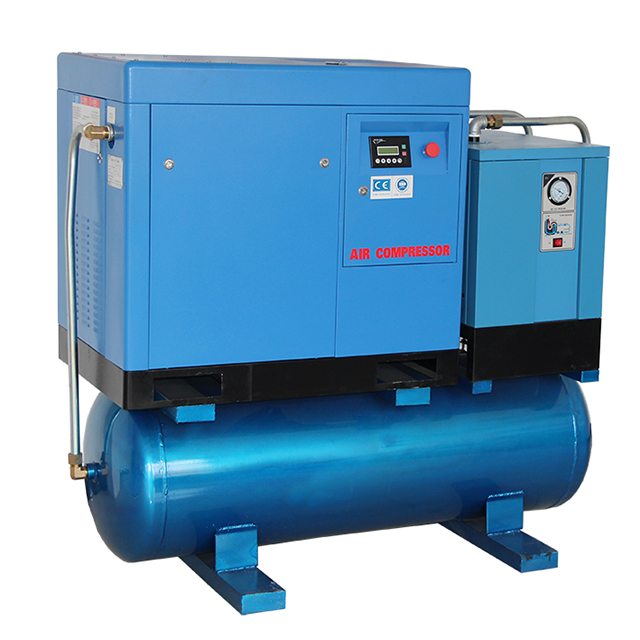

11kw 15hp Integrated screw type air compressor

Home Products combined screw air compressor 11kw 15hp Integrated screw type air comp
11kw 15hp Integrated screw type air compressor 11kw 15hp Integrated screw type air compressor 11kw 15hp Integrated screw type air compressor 11kw 15hp Integrated screw type air compressor

11kw 15hp Integrated screw type air compressor

  • Product Item:YC-15A
  • motor power: 11kw 15HP
  • Air Flow :1.3-1.8 m³/min
  • Working Pressure: 5/7/8/10/12/13
  • Noise:65 dB
  • Category:combined screw air compressor
  • Inquiry Send Email

    Description

    Product description




    Brief Introduction:
    Air end: German Technology. 30 years designed lifetime.
    Motor: 100% rare earth permanent magnet motor.
    Inverter: Chinese No. 1 inverter can save 30% energy.
    Warranty: 5 years for the air end, and 2 years for the whole compressor.
    Delivery time: 7-15 days.
    After-sales service:we have our professional after-sales technician to instruct the installation of the whole screw air compressor.

    We offer free pipe and valves for installation and installation diagram

    Features:

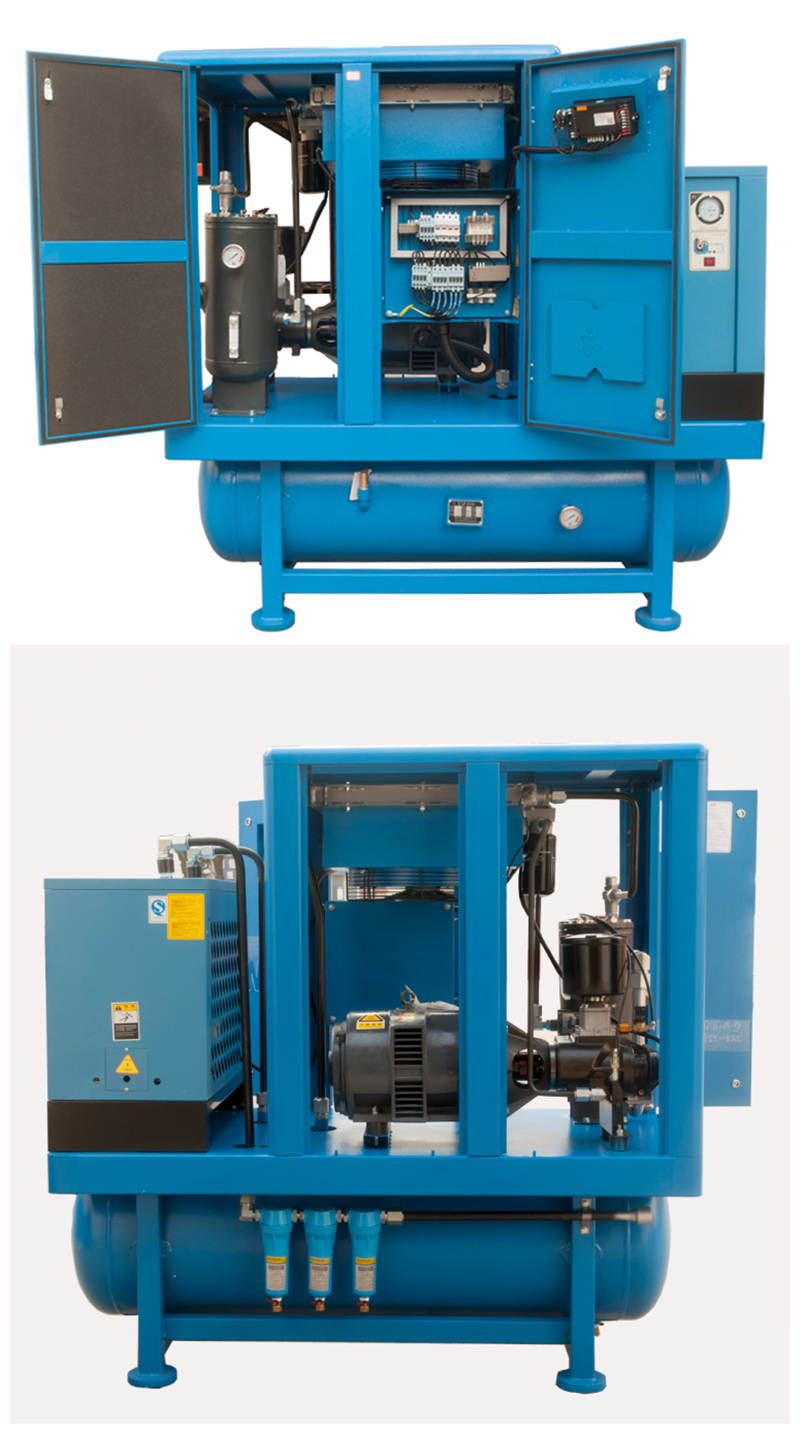

    1. Combined air compressor is integrated with air compressor, air dryer, filters and air tank.

    2. Easy to use. Users can use high-quality compressed air when connected it to the power supply.

    3. Complete system with no additional drying system or no connection piping installation cost.

    4. It’s convenient for use and movement.

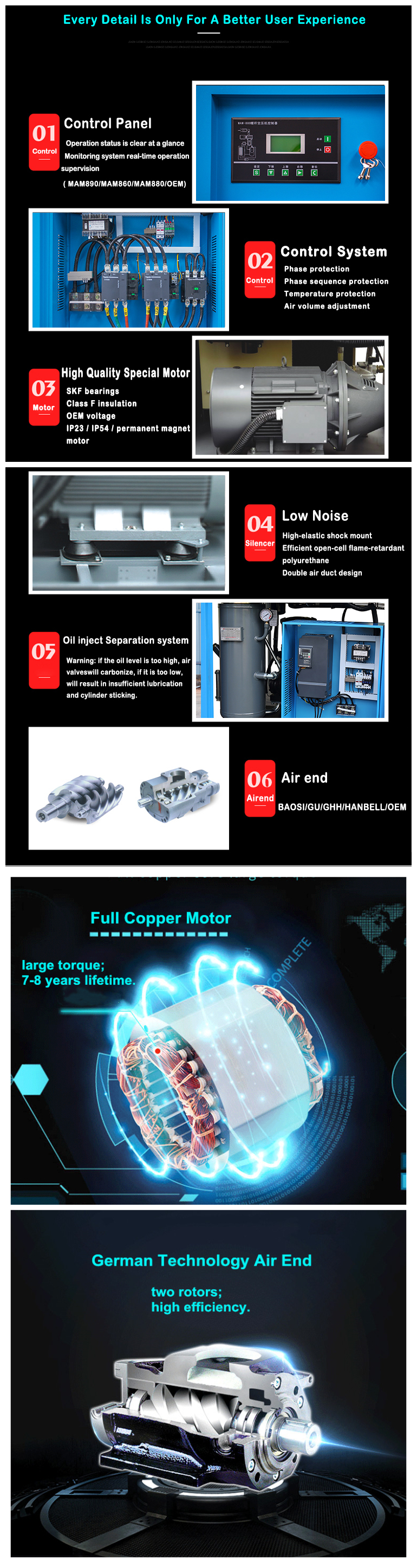

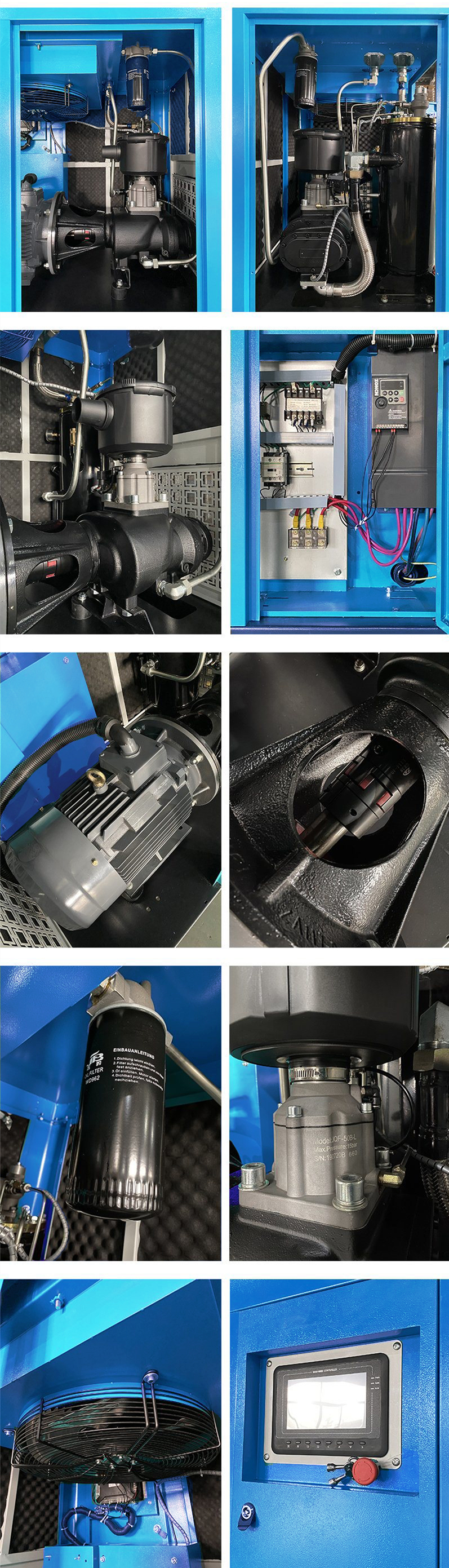

    Advantages

    1. Air end of screw air compressor

    The air end is with state-of-the art screw element and 4 -6 SKF bearings to make sure it plenty of air output and longer lifetime.

    2.Electric Motor of the air compressor

    Name brand qualified IP54 ,F insulation, IE2 , IE3 motor , high efficiency and energy saving.

    3. Intake valve of the screw air compressor

    High efficiency intake valve protects the compressor components  by removing 99% dirty particles down to 3 microns.

    4. Oil Air separator

    High efficiency separating for oil and air and low oil content in the compressed air.

    5. Touch Screen Controller.

    6. High efficient Centrifugal fan can give best cooling for screw compressor.

    7.Dust proof mesh to protect electrical control system

    Product Details






    Model Air Flow (m³/min) Motor Power Noise Tank Volume Outlet Diameter Dimension Weight
    7bar 8bar 10bar 13bar kw dB L inch W*D*H (mm) kg
    YC-7.5A 1.0 0.8 0.5 0.4 5.5 65 300 G3/4'' 1650*730*1530 655
    YC-10A 1.1 1.0 0.85 0.7 7.5 65 300 G3/4'' 1650*730*1530 680
    YC-15A 1.8 1.65 1.5 1.3 11 65 500 G1'' 1955*800*1800 785
    YC-20A 2.4 2.2 2.1 1.8 15 68 500 G1'' 1955*800*1800 810
    YC-25A 3.1 3.0 2.7 2.3 18.5 68 500 G1'' 1960*1070*2012 910
    YC-30A 3.8 3.6 3.2 2.5 22 68 500 G11/2'' 1960*1070*2012 930
    Remarks:
    1. working ambinent temperature: -5℃-45℃;
    2. exhausting air temperature ≤ working ambinent temperature +10℃-15℃;
    3. starting mode: Y-△;
    4. exhausting oil content: <3ppm;
    5. certificate: CE/ISO9001/ASME;
    6. voltage: 380V/220V/400V/440V/415V

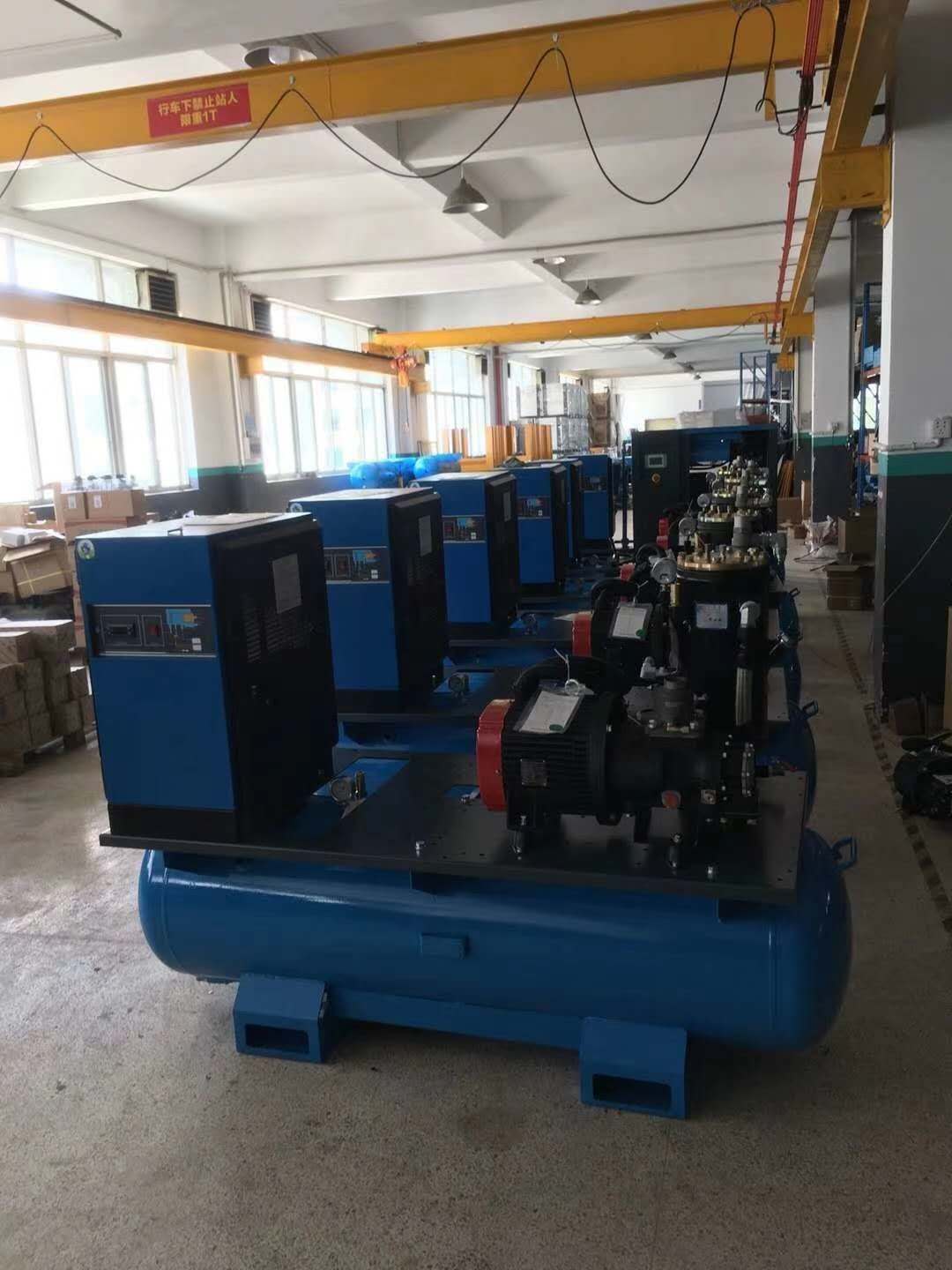

    Our Factory:

    1. Starting from 2001;
    2. With 8,000sq meters workshop;
    3. With 6 production lines;
    4. 500pcs production capacity per month.




    Our Certificates:
    1. CE;
    2. SGS;
    3. ISO9001;
    4. 12 patents for screw compressor.

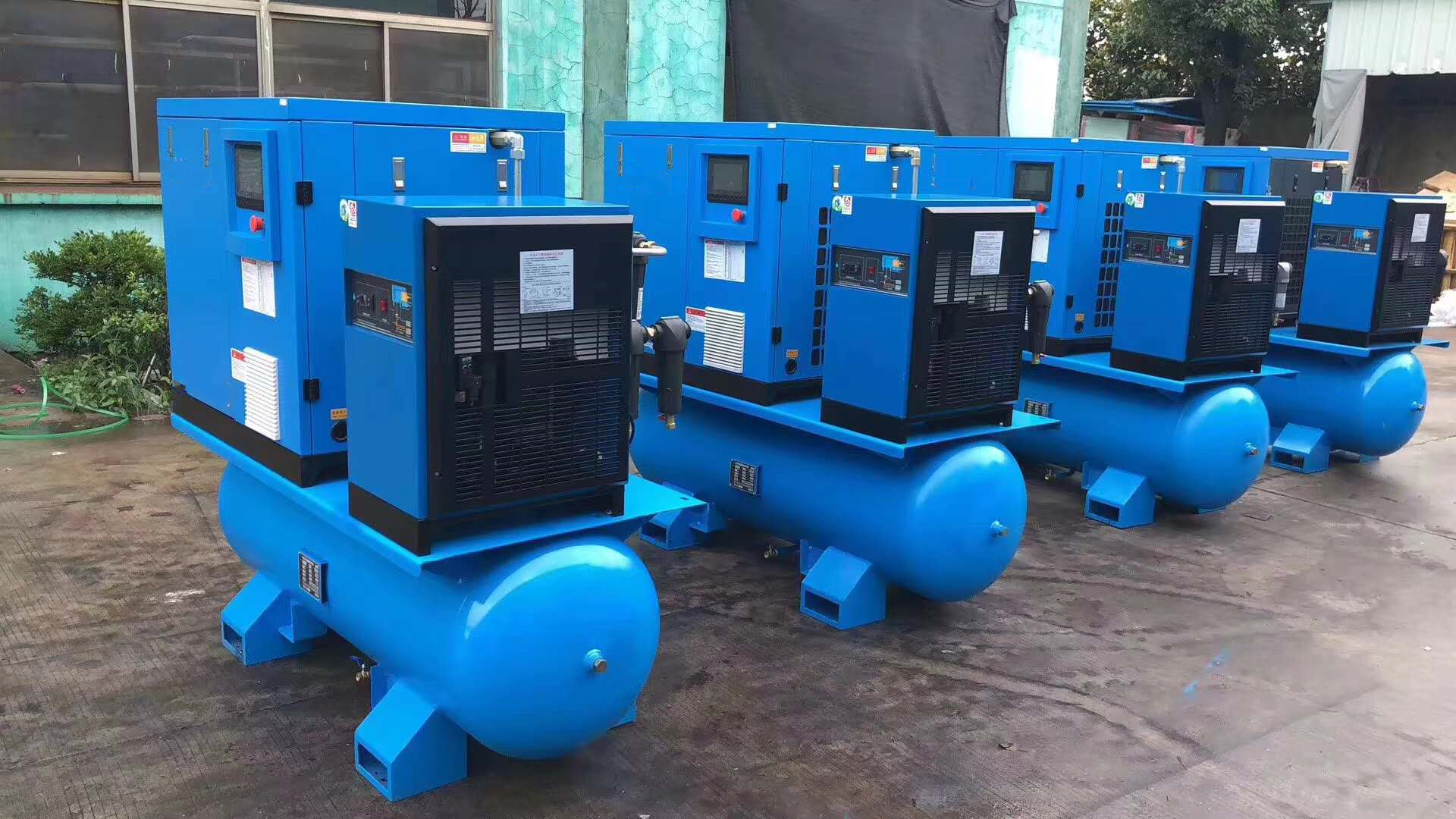

    Use case of screw air compressor

    1. Screw air compressors are exported to 132 countries and regions all over the world;

    2. All indicators of screw air compressor are stable and the failure rate is low;

    3. Perfect after-sales service system, engineers on duty 24 hours a day to provide one-on-one service to customers at the air compressor use site.




    Re-factory quality control process:

    1.Installation inspection of the whole air compressor: check and confirm the whole machine according to the operation instructions and quality control standards. Main inspection items:

    A . Confirm the nose and motor nameplates;

    B . Check whether there is oil leakage in the pipeline and oil circuit of the air compressor; C . the air compressor machine screw locking inspection..

    2. air compressor factory test machine, heat engine: test whether the air compressor operation parameters meet the requirements of customers, including voltage, current, working pressure, exhaust volume, etc.Air compressor factory before 48 hours of thermal test, stability confirmation.

    3. 24 hours online after-sales service, one-to-one online guidance installation, debugging, troubleshooting.


    Screw Air compressor packing method

    1. Screw air compressor packaging is divided into three layers from inside to outside:

    1) The first layer of protection: spray paint on the surface of the machine to protect the surface of the machine. The fouling pull film is wrapped around the surface of the machine to protect the surface of the paint.

    2) The second layer of protection: anti-collision protection of the machine. On the basis of lacquer protection, anti-collision buffer cotton is used to protect the machine against collision.

    3) The third layer of protection: the case adopts the overall packaging of the non-fumigation wooden case to protect the machine during transportation.
