Description
Brief introduction of factory:
1. We have been engaged in r & D, production and sales of air compressors for 19 years;
2. Our air compressor products through CE,SGS,ISO certification, with more than 20 invention patents;
3. Our products are exported to 132 countries and regions around the world;
4. Our air compressor provides a 5-year warranty.
If you have specific parameters and requirements for our Rotary Screw Type Air Compressor, customization is available
Promises Every Machine Will Run Well More Than 15 years
Product description
Brief Introduction:
Air end: Germany Technology. 30 years designed lifetime.
Motor: 100% rare earth permanent magnet motor.
Inverter: Chinese No. 1 inverter can save 30% energy.
Warranty: 5 years for the air end, and 2 years for the whole compressor.
Delivery time: 7-15 days.
After-sales service:we have our professional after-sales technician to instruct the installation of the whole screw air compressor.
Certificate: CE/SGS/ISO9001/ASME
We offer free pipe and valves for installation and installation diagram
Main technical parameters :

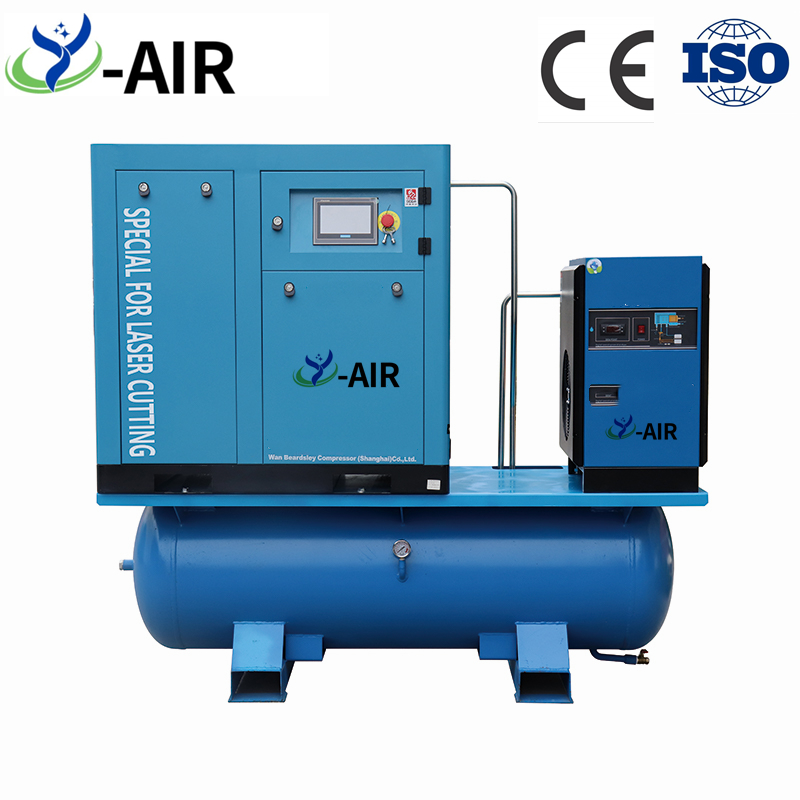

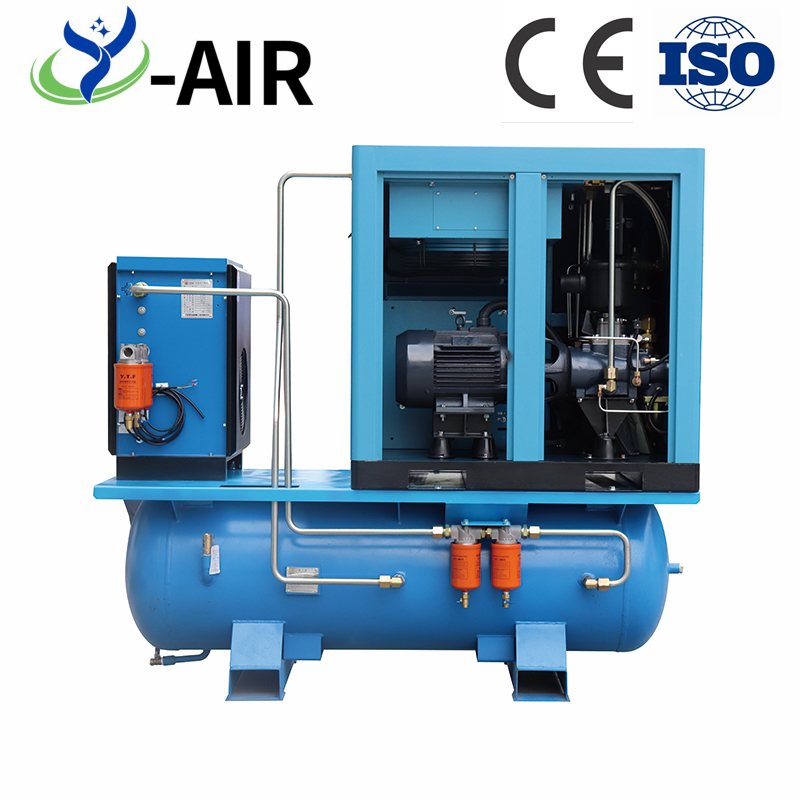

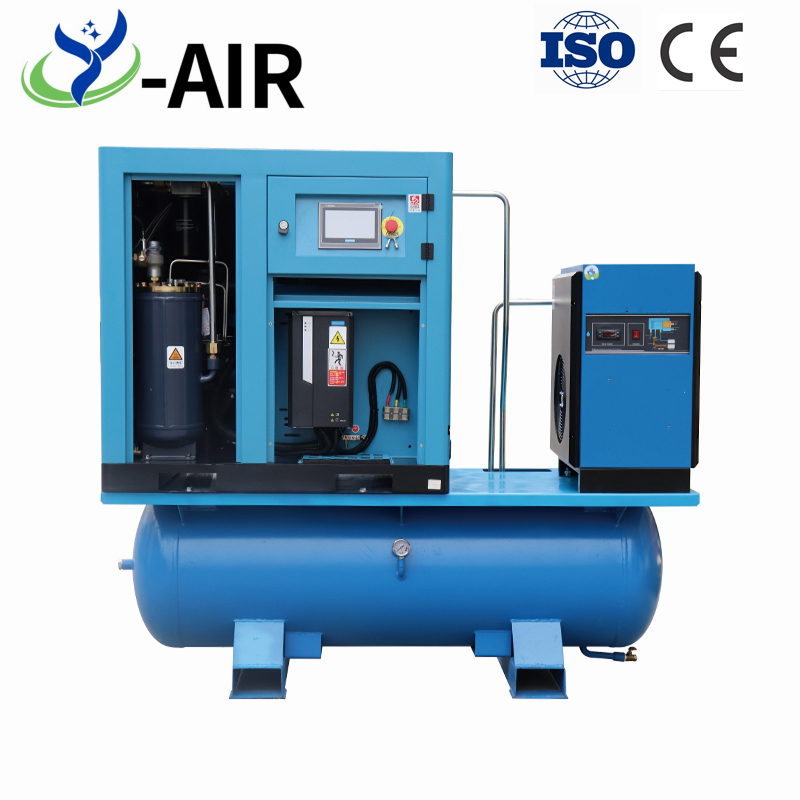

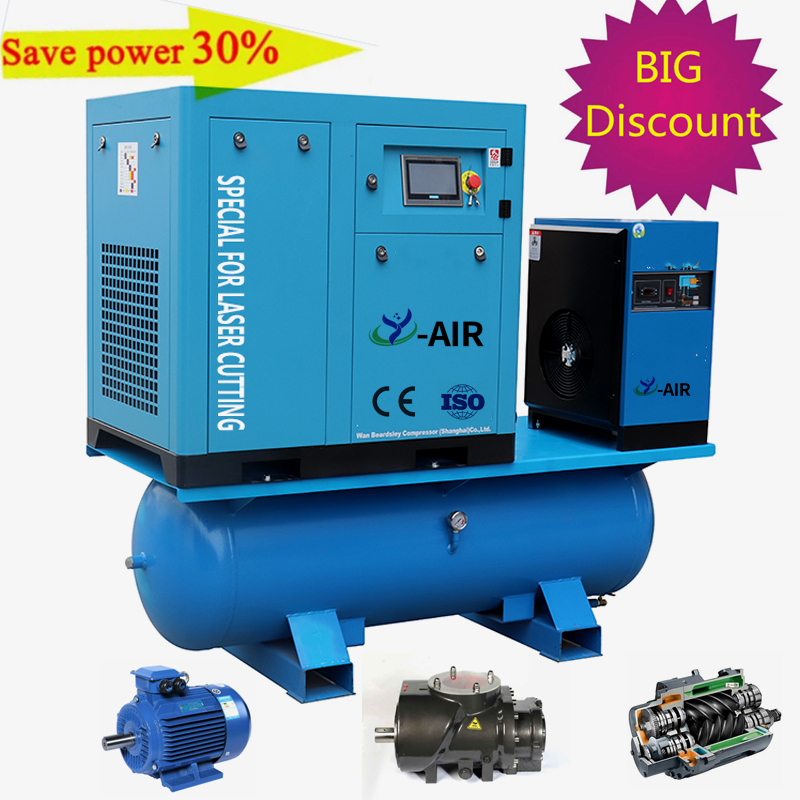

Tank and Dryer Mounted Screw Air Compressor (3-in-1 type)
Model
Air Flow (m³/min)
Motor Power
Noise
Tank Volume
Outlet Diameter
Dimension
Weight
8bar
10bar
13bar
16bar
kw
dB
L
inch
W*D*H (mm)
kg
YC-7.5A
1.0
0.8
0.5
0.4
5.5
65
300
G3/4''
1650*730*1530
655
YC-10A
1.1
1.0
0.85
0.7
7.5
65
300
G3/4''
1650*730*1530
680
YC-15A
1.8
1.65
1.5
1.3
11
65
500
G1''
1955*800*1800
785
YC-20A
2.4
2.2
2.1
1.8
15
68
500
G1''
1955*800*1800
810
YC-25A
3.1
3.0
2.7
2.3
18.5
68
500
G1''
1960*1070*2012
910
YC-30A
3.8
3.6
3.2
2.5
22
68
500
G11/2''
1960*1070*2012
930
Remarks:
1. working ambinent temperature: -5℃-45℃;
2. exhausting air temperature ≤ working ambinent temperature +10℃-15℃;
3. starting mode: Y-△;
4. exhausting oil content: ＜3ppm;
5.certificate: CE/ISO9001/TUV/ASME
· Factory wholesale low prices · We do many OEM for international famous brand such as Ingersoll Rand.OWN brand
· Energy-saving and ultra silent air compressor
· High quality accessories(Imported from Germany)
· Certification:ISO,CE,ASME,UL,CCC etc.,TUV,SGS
· Proprietary import and export rights
· Standard seaworthy package
· Warranty:2 year whole machine,Main parts warranty for 5 years

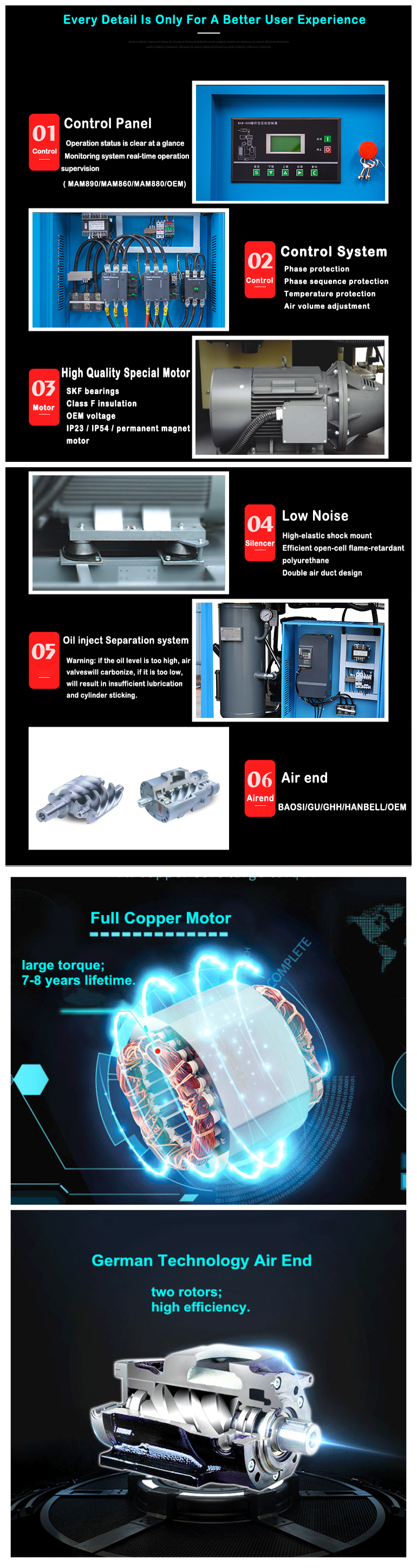

Product Details
Product Advantage :
1 . Air end with high-efficiency
2. Double Screw with low noise, Super Silenced Enclosure
3. Elegant compact design. Fully open access door to inner parts for easy service.
4. 100% Continuous duty operation. Load/No Load operation
5. High quality CE Certificate industrial electric motors. ISO,CE,UL Certificate
6. Easy to use and read LCD control panel
7. High temperature, high pressure and anti-rotation shutdown
8. Energy efficient operation
9. 5 micron, water-resistant air filtration material
10. 2 year full machine warranty,5years air end warranty.
11. Supply the machine with different working voltage according to customer's request,
such as:
220Volt,single phase,60hz/50hz
220Volt,3 phase,60hz / 50hz
380Volt,3phase,50hz
440Volt,3phase,50hz
380Volt,3phase,60hz

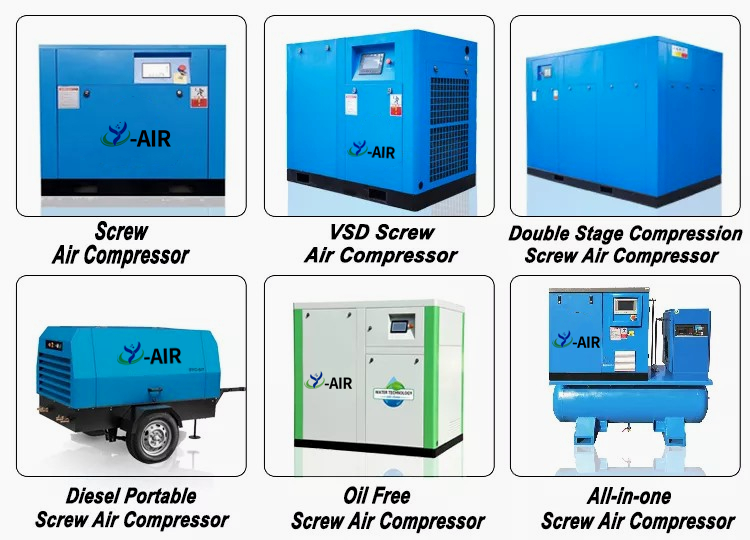

1.Direct Drive screw air compressor
Oilless air compressors
2.rotary screw air compressor
PM VSD scrw air compressor
3.screw type air compressor
Integrated screw air compressor
4.industrial air compressor
Combined screw compressor
5.Permanent Magnet air Compressor
Portable air compressor
6.Permanent Magnet screw air Compressor
Variable Speed air compressor
7.Permanent Magnet screw air Compressor
Silent air compressor
8.Inverter screw Compressor
Samll air compressor
9.Inverter air Compressor
two stage air compressor
10.variable frequency air compressor
high pressure air compressor
11.variable frequency screw air compressor
atlas copco air compressor
12.oil free air compressor
ingersoll rand screw compressor
15.oil less air compressor
electric air compressor
16.Stationary Screw Compressor
High air compressor
OUR TEAM
Certificate
F.A.Q
Q1. Why do customers choose us?
Yunshun Electric Machinery Co., Ltd. is a company specializing in screw air compressor for 20 years since 2001. Our German Standard production line helps us get the affirmation from our agents as well as end-user clients.
Q2. Are you a manufacturer or trading company?
We are a professional manufacturer with big modern factory in Huizhou,China.
Both OEM & ODM service can be accepted.
Q3. What's your delivery time?
Generally 7-15 days, if urgent order, we can arrange, too.
Q4. How long is your air compressor warranty?
2 year for the whole machine and 5years for screw air end, except consumable spare parts.
Q5. How long could your air compressor be used for?
At least 15 years.
Q6. What's payment term?
T/T, L/C, Western Union, Credit Card, and etc.
Q7. How about your customer service?
24 hours on-line service for all our clients.
Q8. How about your after-sales service?
1. Providing customers with installation online instructions.
2. Well-trained engineers available to overseas service.
3. Planning for oversea after-sales supporting company
