Screw Air Compressor

Good Quality 15HP 11Kw 8bar 10bar 13bar Direct Screw Driven High Pressure Air Compressor Manufacturer With Wholesale Price Air Compressors

Home Products direct driven screw air compressor Good Quality 15HP 11Kw 8bar 10bar 13bar

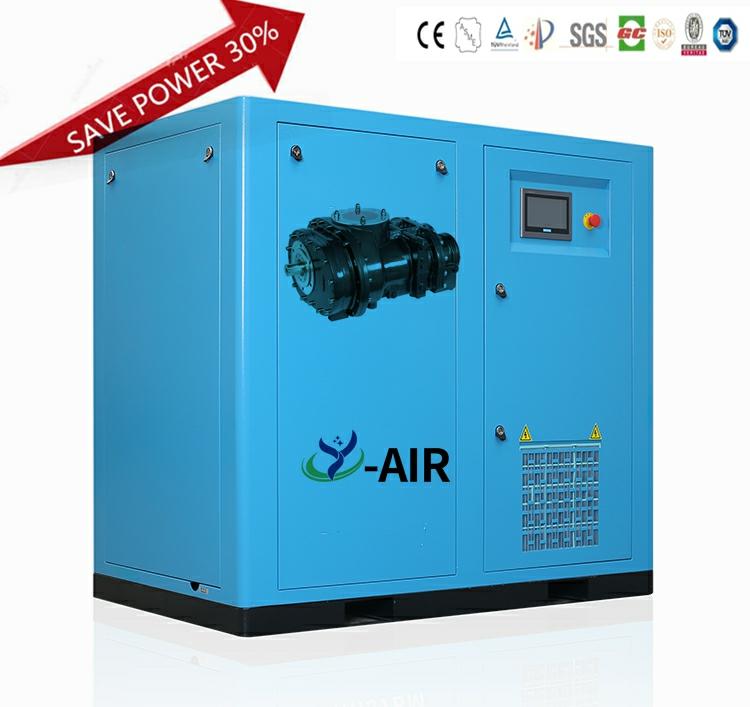

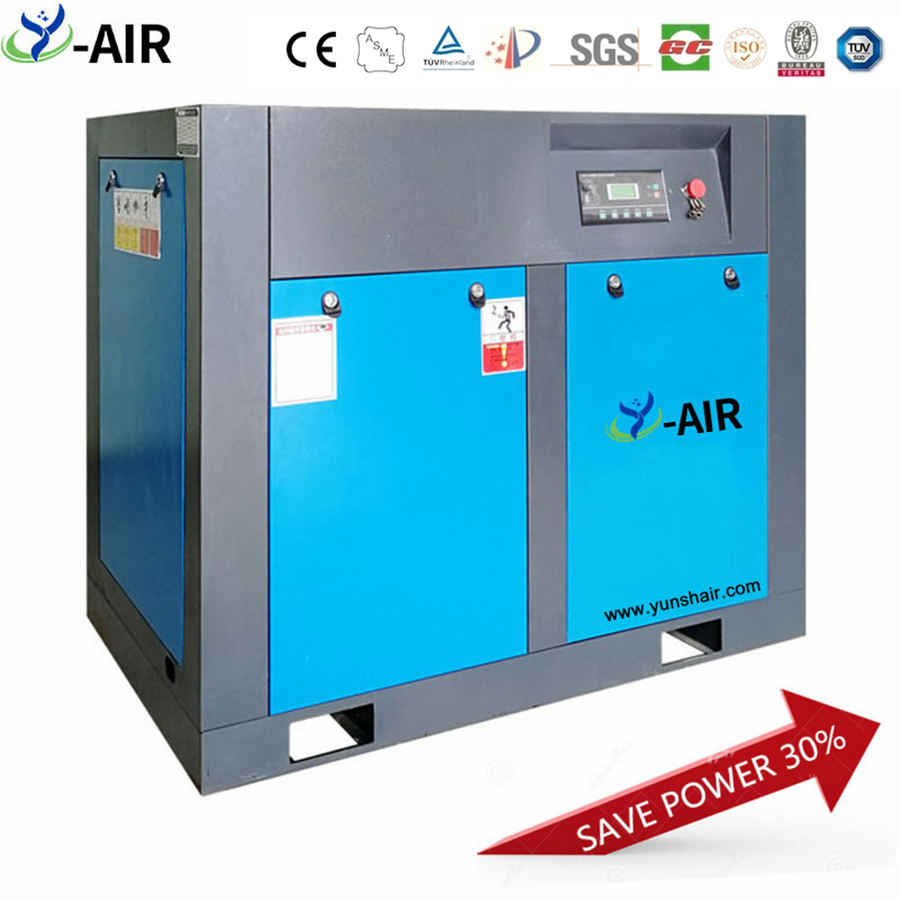

Good Quality 15HP 11Kw 8bar 10bar 13bar Direct Screw Driven High Pressure Air Compressor Manufacturer With Wholesale Price Air Compressors

  • Product Item：YD-15A
  • motor power: 11kw/15hp
  • cooling method: air cooling
  • warranty: 5years for the air end and 2years for the whole compressor
  • MOQ: 1pcs
  • Category：direct driven screw air compressor
    • Inquiry Send Email

    Description



    Features:

    1. driven type: belt driven;

    2. cooling method: air cooling;

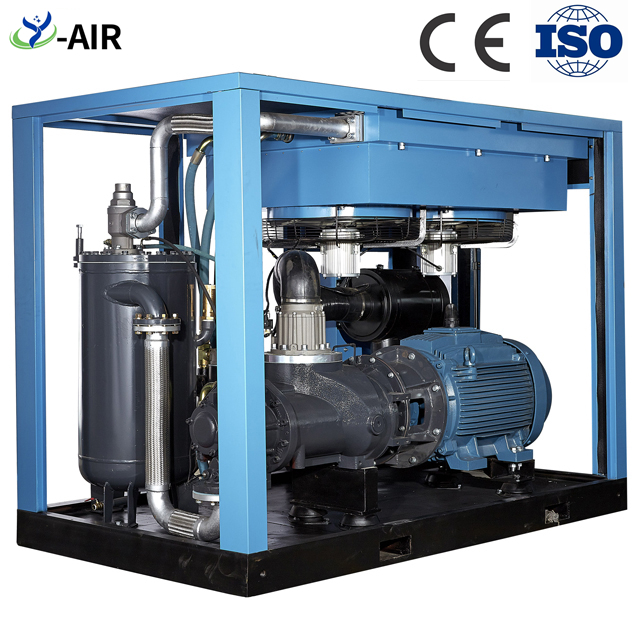

    3. imported air end with high efficiency;

    4. bearing: SKF;

    5. motor protection: IP54/55;

    6. insulation class: F;

    7. noise: 65dB;

    8. exhausting oil content: ＜3ppm；

    9. voltage: 380/220/415V;

    10. air pressure: 7/8/10/13bar;

    11. air capacity: 1.8/1.65/1.5/1.3m³/min.

    Advantages

    1 . Air end with high-efficiency

    2. Double Screw with low noise, Super Silenced Enclosure

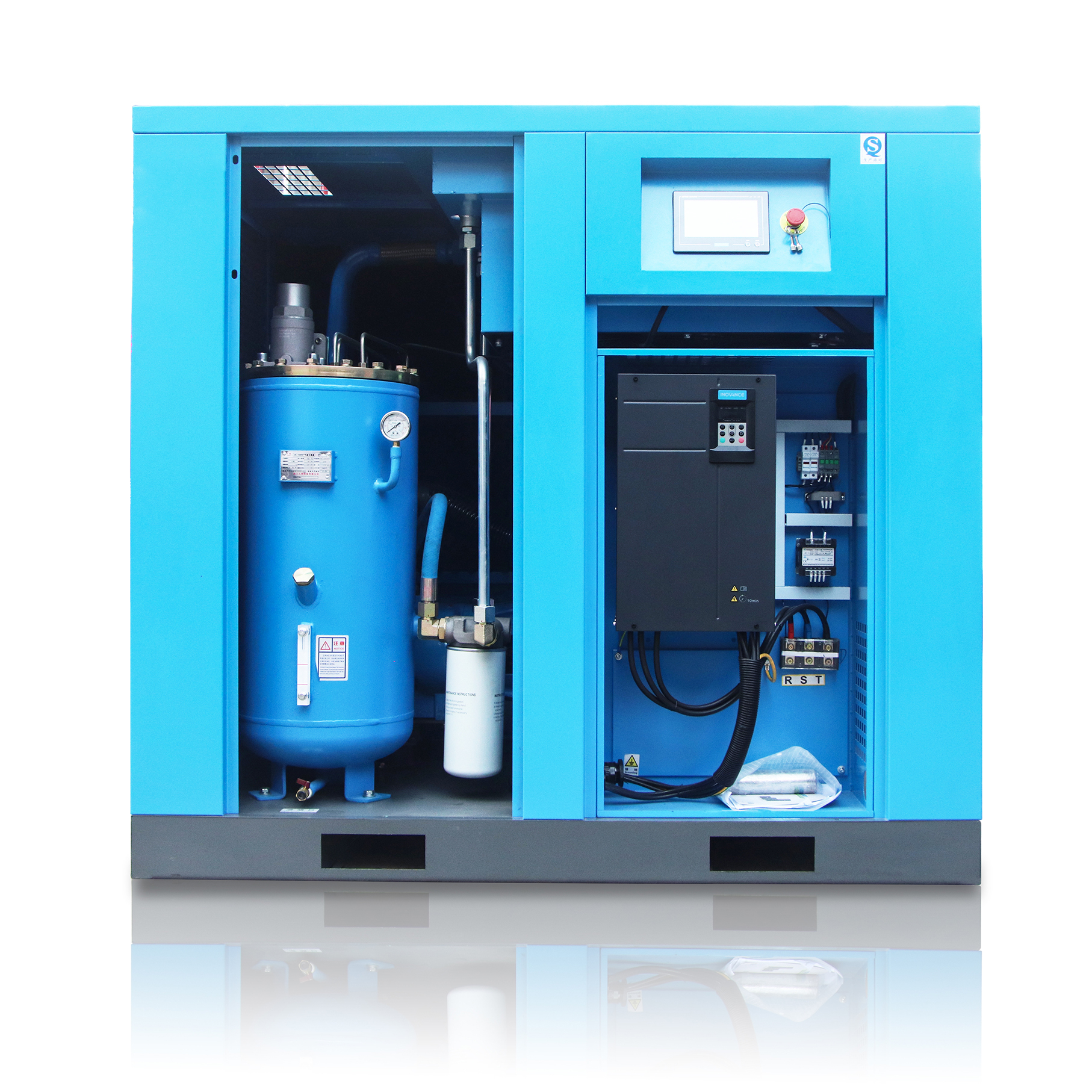

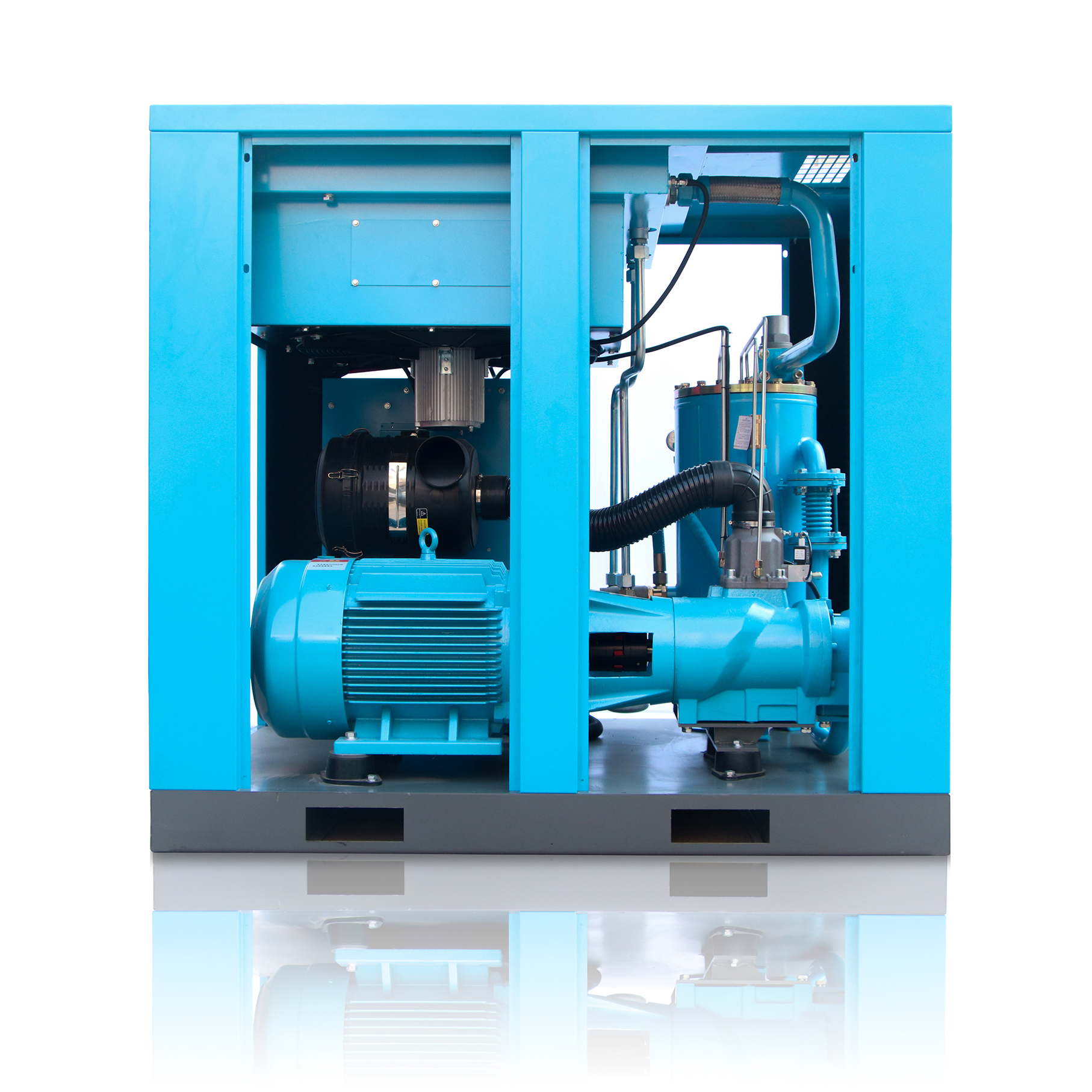

    3. Elegant compact design. Fully open access door to inner parts for easy service.

    4. 100% Continuous duty operation. Load/No Load operation

    5. High quality CE Certificate industrial electric motors. ISO,CE,UL Certificate

    6. Easy to use and read LCD control panel

    7. High temperature, high pressure and anti-rotation shutdown

    8. Energy efficient operation

    9. 5 micron, water-resistant air filtration material

    10. 2 year full machine warranty,5years air end warranty.

    11. Supply the machine with different working voltage according to customer's request,
    such as:

    220Volt,single phase,60hz/50hz
    220Volt,3 phase,60hz / 50hz

    380Volt,3phase,50hz
    440Volt,3phase,50hz
    380Volt,3phase,60hz

    We offer free pipe and valves for installation and installation diagram

    Technical Specifications of screw air compressor

    Model Air Flow (m³/min) Motor Power Noise Outlet Diameter Dimension Weight
    7bar 8bar 10bar 13bar kw dB inch W*D*H (mm) kg
    YD-7.5A 1.0 0.8 0.5 0.4 5.5 65 G3/4'' 780*680*800 300
    YD-10A 1.1 1.0 0.85 0.7 7.5 65 G3/4'' 780*680*800 320
    YD-15A 1.8 1.65 1.5 1.3 11 65 G3/4'' 1100*800*980 400
    YD-20A 2.4 2.2 2.1 1.8 15 68 G3/4'' 1100*800*980 430
    YD-25A 3.1 3.0 2.7 2.3 18.5 68 G1'' 1250*870*1180 590
    YD-30A 3.8 3.6 3.2 2.5 22 68 G1'' 1250*870*1180 650
    YD-40A 5.3 5.0 4.3 3.6 30 69 G1'' 1250*870*1180 750
    YD-50A 6.6 6.2 5.7 4.6 37 69 G11/2'' 1540*950*1290 880
    YD-60A 8.0 7.7 6.9 6.0 45 70 G11/2'' 1540*950*1290 1000
    YD-75A/W 10.5 9.8 8.7 7.3 55 70 G2'' 1600*1150*1420 1500
    YD-100A/W 13.6 13.0 11.3 10.1 75 72 G2'' 2010*1260*1460 1900
    YD-125A/W 16.2 15.4 13.2 11.2 90 72 DN50 2010*1260*1460 2500
    YD-150A/W 20.8 19.5 16.5 13.7 110 73 DN65 2300*1600*1790 2800
    YD-175A/W 24.0 23.0 20.0 15.5 132 74 DN65 2300*1600*1790 3000
    YD-220A/W 27.8 26.0 23.5 19.5 160 75 DN80 2500*1700*1850 3500
    YD-250A/W 32.5 31.0 26.0 21.6 185 76 DN80 2500*1700*1850 3800
    YD-270A/W 34.5 33.0 28.0 23.5 200 77 DN80 2500*1700*1850 4200
    YD-300A/W 38.0 36.5 32.0 27.0 220 78 DN100 2800*1900*1950 4800
    YD-350A/W 43.0 40.5 36.5 32.0 250 80 DN100 2800*1900*1950 5200
    YD-500A/W 76.0 75.3 65.4 59.0 400 83 DN125 4200*2200*2240 8200
    Remarks:
    1. "A" represents air cooling, and "W" represents water cooling;
    2. working ambinent temperature: -5℃-45℃;
    3. exhausting air temperature ≤ working ambinent temperature +10℃-15℃;
    4. starting mode: Y-△;
    5. exhausting oil content: ＜3ppm;
    6. certificate: CE/ISO9001/ASME;
    7. voltage: 380V/220V/400V/440V/415V
