(20 years Made in china factory) rotary Screw type Air Compressor Industrial 15kw 8bar 10bar 12bar 16bar High Efficiency 30% Energy Saving Compressors Suppliers CE&ISO

Home Products direct driven screw air compressor (20 years Made in china factory) rotary

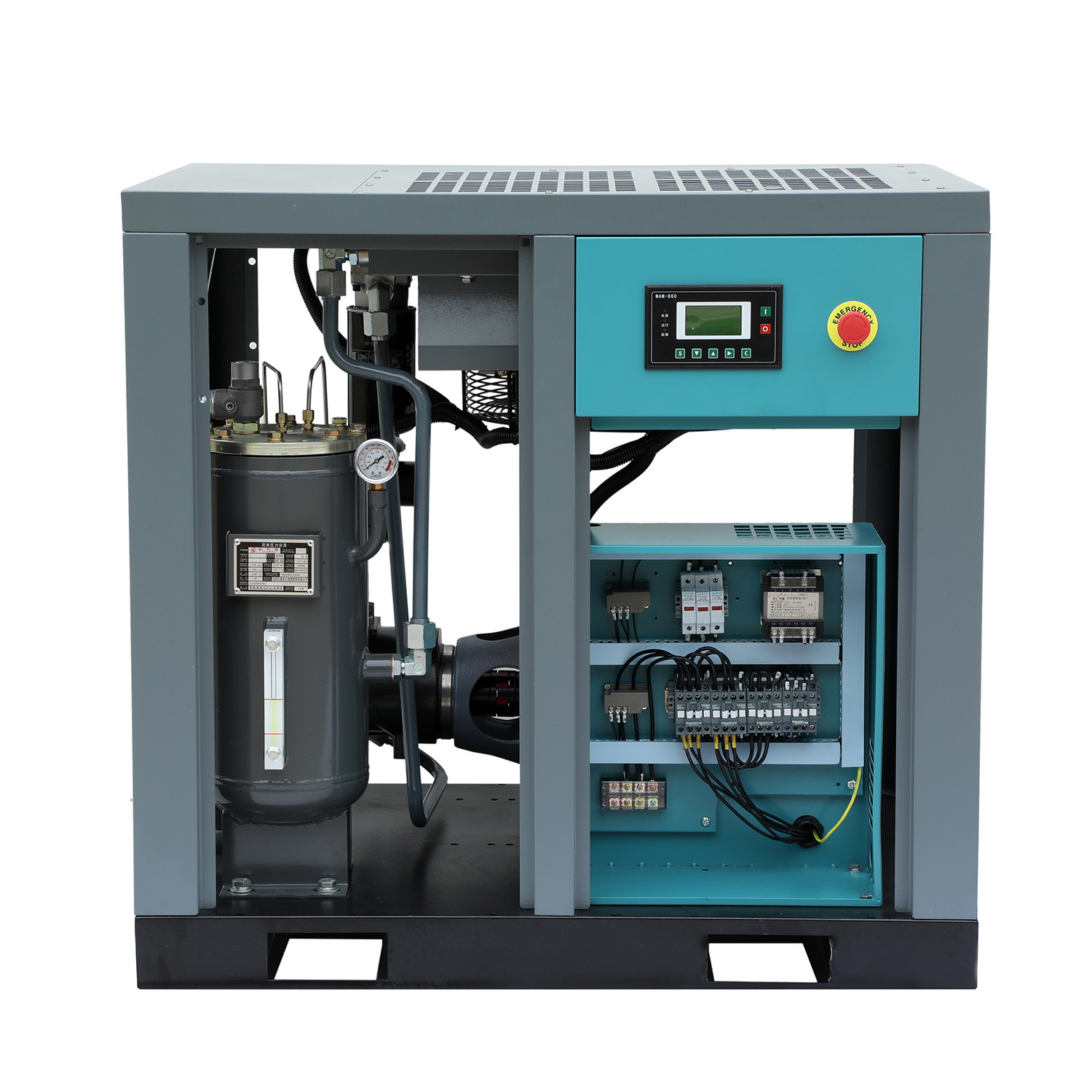

(20 years Made in china factory) rotary Screw type Air Compressor Industrial 15kw 8bar 10bar 12bar 16bar High Efficiency 30% Energy Saving Compressors Suppliers CE&ISO         (20 years Made in china factory) rotary Screw type Air Compressor Industrial 15kw 8bar 10bar 12bar 16bar High Efficiency 30% Energy Saving Compressors Suppliers CE&ISO         (20 years Made in china factory) rotary Screw type Air Compressor Industrial 15kw 8bar 10bar 12bar 16bar High Efficiency 30% Energy Saving Compressors Suppliers CE&ISO

(20 years Made in china factory) rotary Screw type Air Compressor Industrial 15kw 8bar 10bar 12bar 16bar High Efficiency 30% Energy Saving Compressors Suppliers CE&ISO

  • Product Item:YD-20A
  • Air Flow (m³/min): 2.4 m³/min
  • Motor Power:15kw 20hp
  • air pressure:7/8/10/12/13/15/16/30 bar
  • Noise:65dB
  • Category:direct driven screw air compressor
  • Inquiry Send Email

    Description


    Product Description :


    Brief Introduction of screw air compressor:

    Air end

    Germany Technology. 30 Years Designed Lifetime

    Motor Efficiency Class

    Ultraefficient/IE3/IE4 as per your required

    Motor Protection Class

    IP23/IP54/IP55 or as per your required (100% rare earth permanent magnet motor)

    Inverter

    Chinese No. 1 Inverter Can Save 30% Energy

    Warranty

    5 Years for The Air End, and 2 Years for The Whole

    Voltage

    380V/3PH/50HZ/60HZ,   220V/3PH/50HZ/60HZ,   400V/3PH/50HZ/60HZ,   440V/3PH/50HZ/60HZ,   415V/3PH/50HZ/60HZ,   230V/3PH/50HZ/60HZ, 220V/1PH/60HZ/ dual voltage is also ok

    Delivery time

    7-15 days

    Certificate

    CE/SGS/ISO9001/ASME

    After-sales service

    we have our professional after-sales technician to instruct the installation of the whole screw air compressor

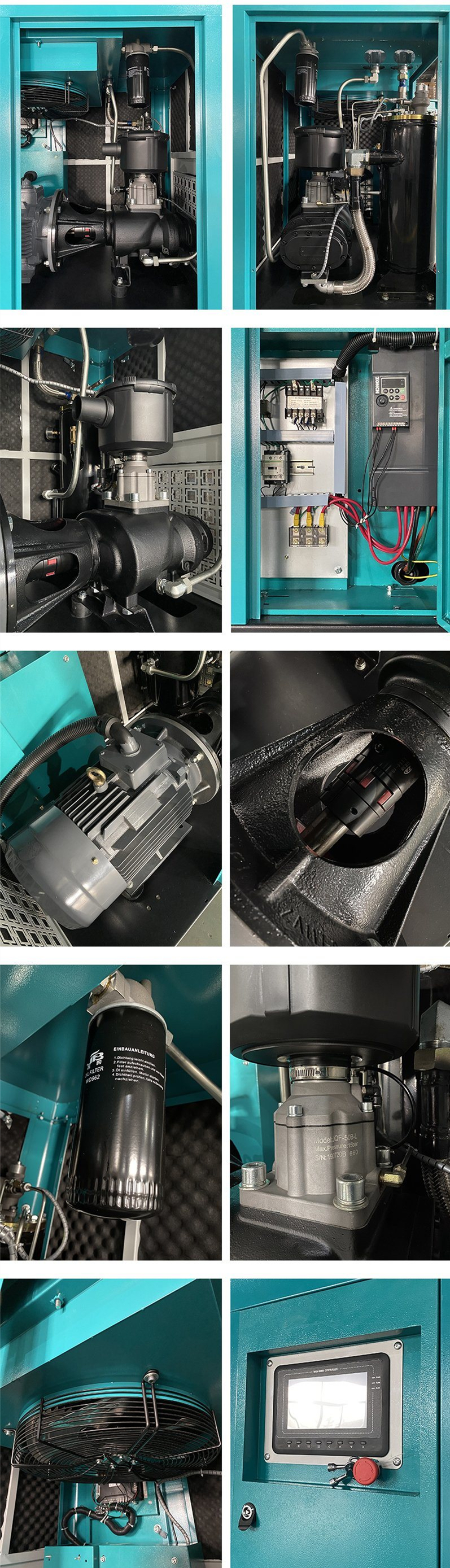

    Product Details :

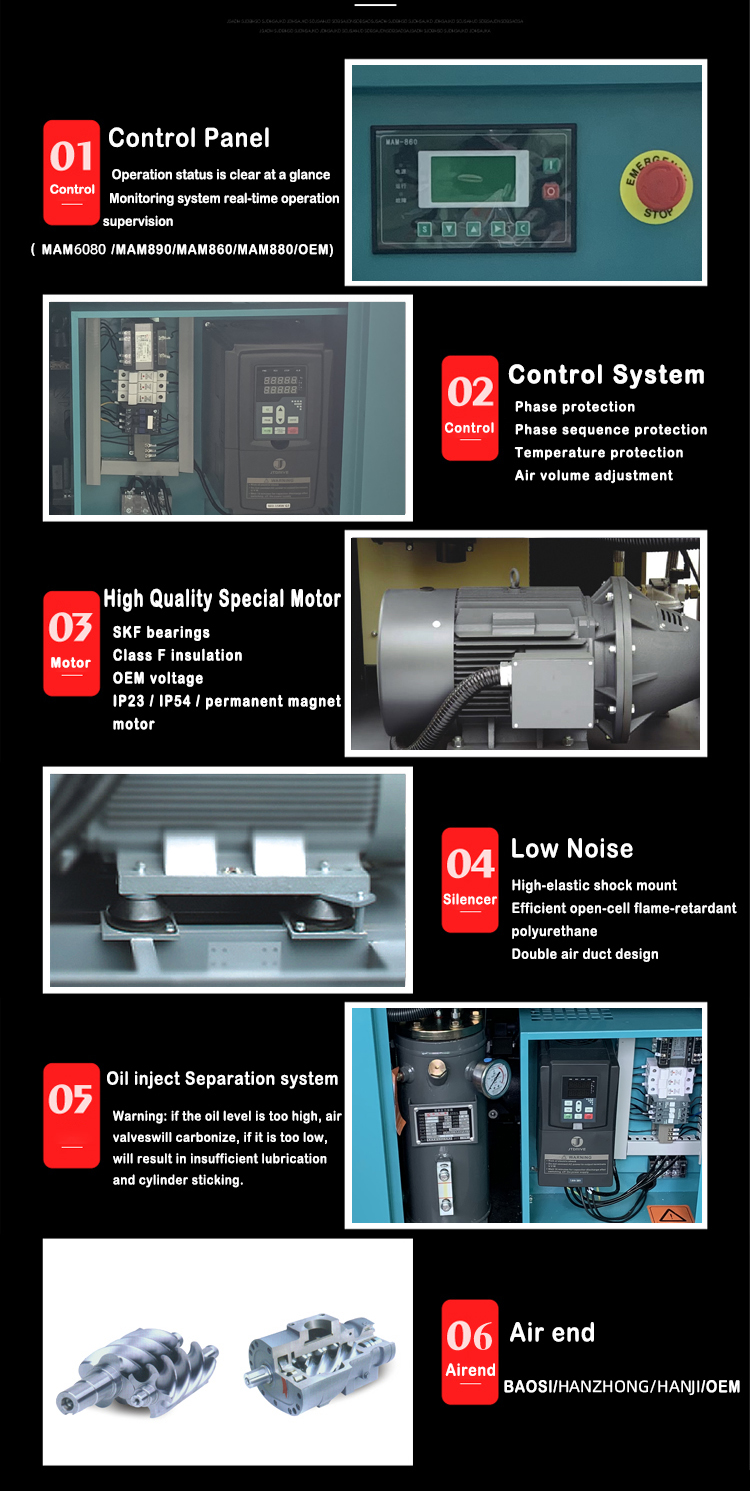

    Product Advantages :

    1. China latest technology cooperation, high reliability.
    2. Permanent Magnetic Motor.
    3. IP54 protection grade & heavy duty air filter, suitable for high dusty environment.
    4. Most energy saving mode, Only work at loading.
    5. Wide frequency range 25%-100%.
    6. Premium Magnetic material resist more than 180ºC temp.

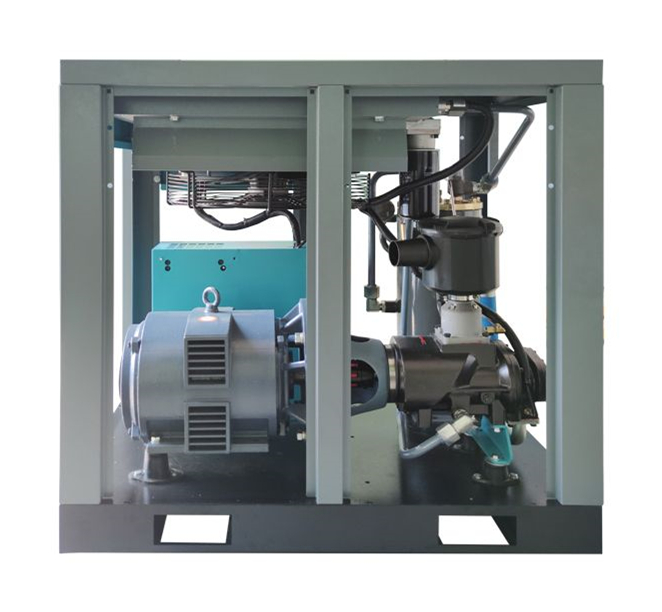

    7. Direct Type connection, no transmission power loss, easy maintenance.

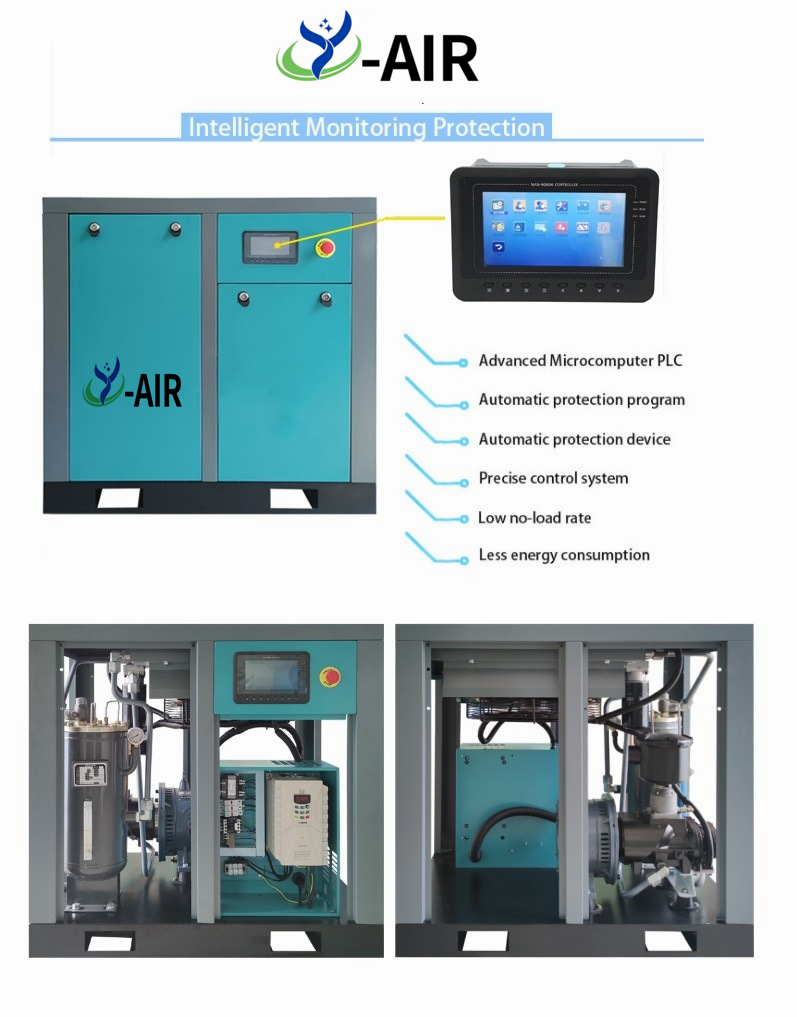

    8.Touch Screen PLC with preset running schedule, more intelligent control.
    9. Both main motor and fan motor are inverter control, more accurate control.
    10. Easy for installation and service.
    11. Energy Saving, save up to more than 30-40%

    Main technical parameters :


    Model Air Flow (m³/min) Motor Power Noise Outlet Diameter Dimension Weight
    7bar 8bar 10bar 13bar kw dB inch W*D*H (mm) kg
    YD-7.5A 1.0 0.8 0.5 0.4 5.5 65 G3/4'' 780*680*800 300
    YD-10A 1.1 1.0 0.85 0.7 7.5 65 G3/4'' 780*680*800 320
    YD-15A 1.8 1.65 1.5 1.3 11 65 G3/4'' 1100*800*980 400
    YD-20A 2.4 2.2 2.1 1.8 15 68 G3/4'' 1100*800*980 430
    YD-25A 3.1 3.0 2.7 2.3 18.5 68 G1'' 1250*870*1180 590
    YD-30A 3.8 3.6 3.2 2.5 22 68 G1'' 1250*870*1180 650
    YD-40A 5.3 5.0 4.3 3.6 30 69 G1'' 1250*870*1180 750
    YD-50A 6.6 6.2 5.7 4.6 37 69 G11/2'' 1540*950*1290 880
    YD-60A 8.0 7.7 6.9 6.0 45 70 G11/2'' 1540*950*1290 1000
    YD-75A/W 10.5 9.8 8.7 7.3 55 70 G2'' 1600*1150*1420 1500
    YD-100A/W 13.6 13.0 11.3 10.1 75 72 G2'' 2010*1260*1460 1900
    YD-125A/W 16.2 15.4 13.2 11.2 90 72 DN50 2010*1260*1460 2500
    YD-150A/W 20.8 19.5 16.5 13.7 110 73 DN65 2300*1600*1790 2800
    YD-175A/W 24.0 23.0 20.0 15.5 132 74 DN65 2300*1600*1790 3000
    Our team:
