Product description
Brief Introduction:
Air end: German Technology. 30 years designed lifetime.
Motor: 100% rare earth permanent magnet motor.
Inverter: Chinese No. 1 inverter can save 30% energy.
Warranty: 5 years for the air end, and 2 years for the whole compressor.
Delivery time: 7-15 days.
After-sales service:we have our professional after-sales technician to instruct the installation of the whole screw air compressor.
We offer free pipe and valves for installation and installation diagram

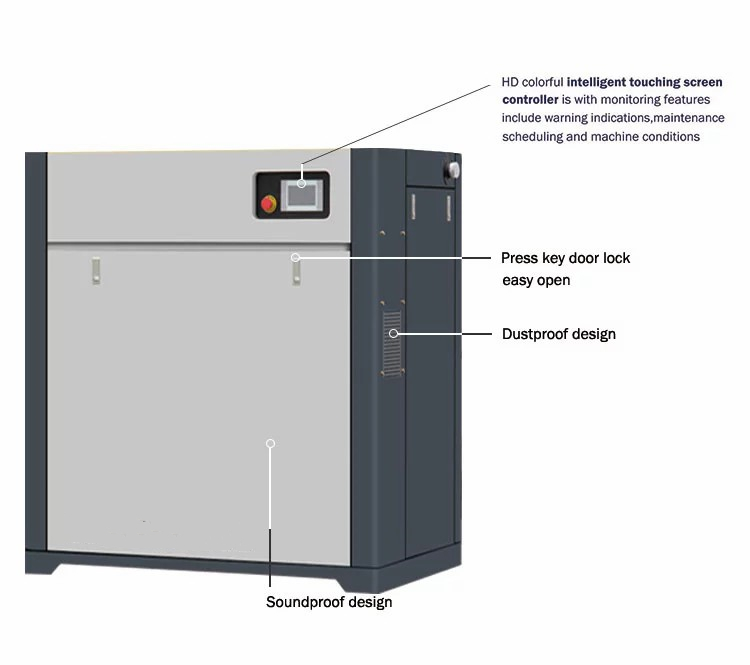

Product details
Technical Specifications of screw air compressor
Model
Air Flow (m³/min)
Motor Power
Noise
Outlet Diameter
Dimension
Weight
7bar
8bar
10bar
13bar
kw
dB
inch
W*D*H (mm)
kg
YP-10A
1.1
1.0
0.85
0.7
7.5
65
G1''
960*680*960
280
YP-15A
1.8
1.65
1.5
1.3
11
65
G1''
1050*830*1240
380
YP-20A
2.4
2.2
2.1
1.8
15
68
G1''
1050*830*1240
380
YP-25A
3.1
3.0
2.7
2.3
18.5
68
G1''
1200*830*1290
480
YP-30A
3.8
3.6
3.2
2.5
22
68
G1''
1200*830*1290
480
YP-40A
5.3
5.0
4.3
3.6
30
69
G11/2''
1300*1000*1540
710
YP-50A
6.6
6.2
5.7
4.6
37
69
G11/2''
1300*1000*1540
710
YP-60A
8.0
7.7
6.9
6.0
45
70
G11/2''
1500*1160*1700
990
YP-75A
10.5
9.8
8.7
7.3
55
70
G11/2''
1500*1160*1700
990
YP-100A
13.6
13.0
11.3
10.1
75
72
G2''
1700*1180*1800
1300
YP-125A
16.2
15.4
13.2
11.2
90
72
DN50
1850*1200*1900
1400
YP-150A
20.8
19.5
16.5
13.7
110
73
DN65
2250*1260*2055
1560
Remarks:
1. working ambinent temperature: -5℃-45℃;
2. exhausting air temperature ≤ working ambinent temperature +10℃-15℃;
3. starting mode: Y-△;
4. exhausting oil content: ＜3ppm;
5. certificate: CE/ISO9001/ASME;
6. voltage: 380V/220V/400V/440V/415V
