Description
1.5-30 m3/min Freeze dryer for screw air compressor

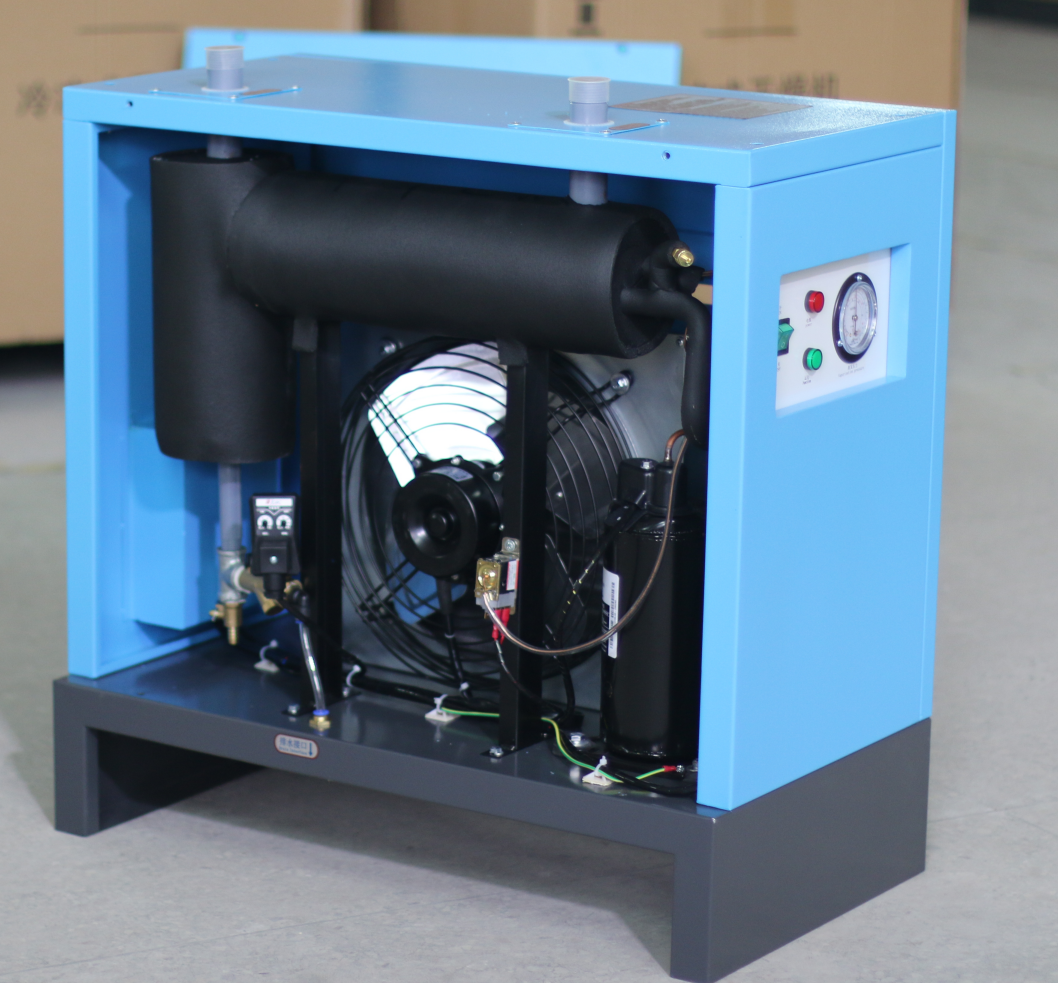

Refrigerated Air Dryer Features
1. Imported full-sealing refrigerated compressor with super cooling system, stable operation, low noise, reliability, energy saving and long lifetime.
2. Heat exchange and condenser are make of good material. They are high efficiency for heat transmitting with smaller size but compact structure.
3.We adopt internationally advanced refrigeration control element with excellent performance.
4.Real-time display of operating parameters with intelligent electronic control panel.
5.The structure of the equipment is reasonable and easy to maintain.
Product parameters
Water Cooling Air Dryer
Model
Air
Capacity
Compressor Power
Inlet
Temp.
Working
Pressure
Ambient
Temp.
Voltage
Refrigerant
outlet
dew point
Pipe Diameter
Dimension
Weight
m³/min
hp
℃
bar
℃
V
℃
inch
W*D*H (mm)
kg
AD-10A
1.5
0.5
≤65
6-10
5-40
220
R22/R134A
2-10
G1''
730*420*730
55
AD-15A
2.0
0.5
G1''
800*350*730
55
AD-20A
2.6
0.75
G1''
800*420*790
75
AD-30A
3.8
1.2
G11/2''
910*500*890
95
AD-50A
6.7
1.6
DN50
1000*510*990
131
AD-75A
10.7
2.2
DN65
1130*550*1100
145
AD-100A
13.8
3
380
DN80
1160*620*1135
193
AD-150A
20.0
4
DN80
1460*620*1185
244
AD-200A
25.0
5
DN80
1600*710*1230
293
AD-250A
30.0
6
DN100
1600*710*1230
325
AD-300A
35.0
8
DN100
1800*800*1400
430
AD-400A
45.0
10
DN125
1880*1000*1650
460
2. Desiccant Air Dryer
Model
Air
Capacity
Compressor Power
Inlet
Temp.
Working
Pressure
Ambient
Temp.
Voltage
Refrigerant
outlet
dew point
Pipe Diameter
Dimension
Weight
m³/min
hp
℃
bar
℃
V
℃
inch
W*D*H (mm)
kg
AD-150W
21.0
5
≤65
6-10
5-40
380
R22/R134A
2-10
DN80
1280*700*1400
320
AD-200W
29.5
7.5
DN80
1380*750*1400
360
AD-300W
36.5
8
DN100
1500*900*1450
450
AD-400W
45.5
10
DN100
1500*900*1450
480
AD-500W
56.0
12
DN100
1650*1000*1450
560
AD-600W
65.0
15
DN125
1650*1000*1450
580
AD-700W
75.0
17.5
DN125
2000*1300*1500
650
AD-800W
85.0
20
DN150
2000*1300*1500
900
AD-900W
105.0
22.5
DN150
2400*1400*1600
950
AD-1000W
120.0
25
DN200
2400*1400*1600
1500
AD-1500W
170.0
40
DN200
2800*1600*1900
1800
AD-2000W
230.0
50
DN250
3800*1700*1900
2000
AD-2500W
290.0
63
DN250
4000*1900*2000
2250
AD-3000W
370.0
75
DN300
5000*2000*2300
2580

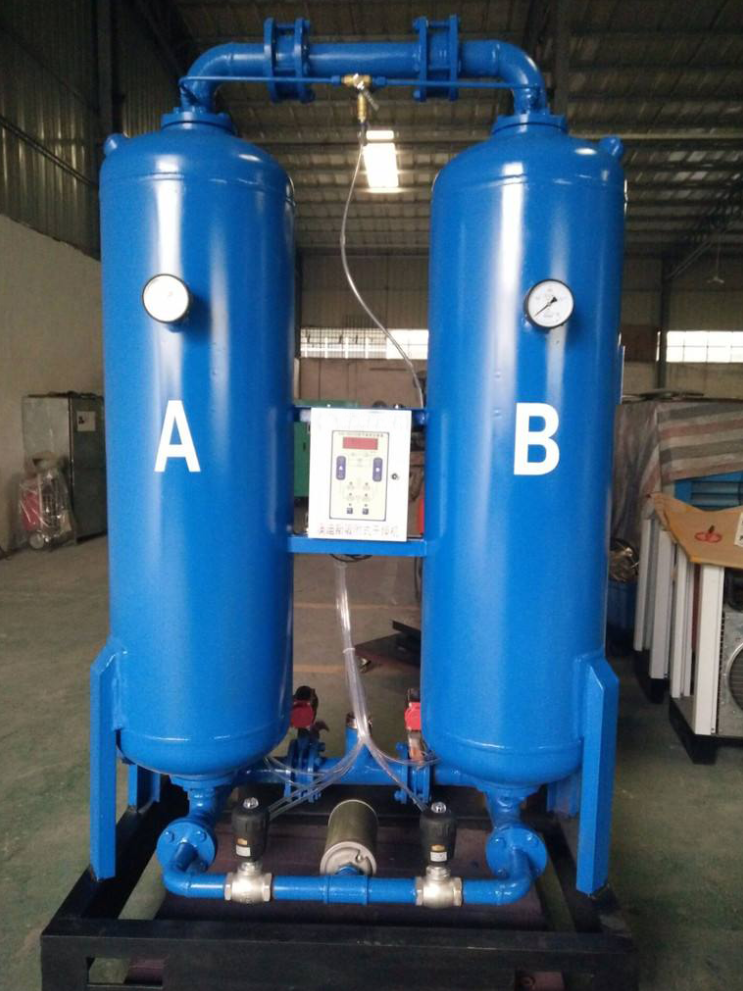

Brief Introduction
The desiccant air dryer achieve the drying effect by "pressure change" (pressure change desiccant principle). Since the air's ability to hold water vapor is inversely proportional to the pressure, a portion of the dried air (called regeneration gas) is decompressed and expanded to high pressure. This pressure change causes the expanded air to become drier and then flows through the unconnected air stream. The desiccant layer to be regenerated (ie, the drying tower that has absorbed enough water vapor), the dried regeneration gas sucks out the moisture in the desiccant and takes it out of the dryer to achieve the purpose of dehumidification. The two towers work cyclically, eliminating the need for a heat source and continuously providing dry compressed air to the user's gas system.
Little heated Desiccant Air Dryer
